Sintesi delle specifiche
-
Measured variables
CO2, SO2, NO, NO2, CO, NH3, H2O
-
Ambient temperature range
0 °C ... +50 °C
Type approved up to 45 °C -
Conformities
MARPOL Annex VI and NTC 2008 – MEPC.177(58)
Guidelines for exhaust gas cleaning systems – MEPC.340(77)
Guidelines for SCR reduction systems – MEPC.198(62)
DNV GL Rules for Type Approvals (2012)
IACS E10 and Rules of major classification societies
Campo applicativo

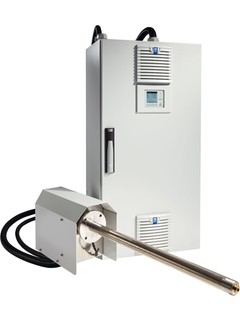

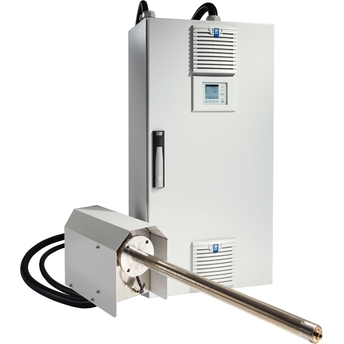

The MARSIC300 ship emissions measuring device is a customized solution for reliably measuring emissions on ships according to MARPOL Annex VI and IMO MEPC. The MARSIC300 is type-approved for this application by well-known classification organizations. The MARSIC300 measures both SOx and CO2 upstream and downstream of the scrubbers, and NOx upstream and downstream of SCR plants. The measuring device impresses with extremely low maintenance costs and modules that are easy to replace.
Reliable emission monitoring on ships
Accurate DeNOx and DeSOx measurements for ship engines
Cost-efficient process monitoring of the scrubber and catalytic converters
Device properties:
Rugged design and high level of measurement accuracy
Type-approved by well-known classification organizations in accordance with MARPOL Annex VI and IMO MEPC
Measuring ranges adapted to low and high concentrations of SO2 and NOx
Up to 7 measuring components at the same time: SO2, CO2, CO, NO, NO2, NH3, H2O
Vantaggi
Modules that are easy to replace during servicing
Low costs thanks to minimal maintenance requirements
Extensive network for service support
Quick access to expert support with remote maintenance
No expensive test gases thanks to its certified internal drift correction
Also equipped for new requirements thanks to its rugged design and high level of measurement accuracy
