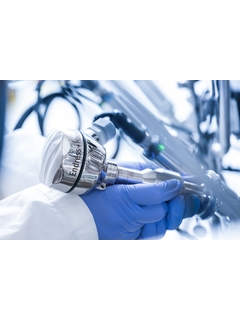

.jpg "Our sanitary thermometer iTHERM TM411 with QuickNeck bayonet mount in a bioreactor")
.jpg "iTHERM TM411 sanitary thermometer with digital display for local process temperature indication")
Specs at a glance
-
Accuracy
class A acc. to IEC 60751
class AA acc. to IEC 60751 -
Response time
depending on configuration
iTHERM QuickSens: t90 = 1,5 s
iTHERM StrongSens: t90 = 9,5 s -
Max. process pressure (static)
at 20 °C: 40 bar (580 psi)
-
Operating temperature range
PT100:
-200 °C … 600 °C
(-328 °F … 1.112 °F)
iTHERM StrongSens:
-50 °C … 500 °C
(-58 °F … 932 °F)
iTHERM QuickSens:
-50 °C … 200 °C
(-58 °F … 392 °F)
Field of application
The modular sanitary thermometer iTHERM TM411 with digital display delivers highly accurate, reliable and fast temperature measurements in process lines, vessels, tanks, fermenters and more. The high-performance device is designed for the strictly regulated food and life sciences industries. Configure your hygienic instruments from a selection of thin film RTDs with QuickSens or StrongSens technology or 2x Pt100 wire wound temperature sensors, smart transmitters and hygienic process connections.
Designed for use in hygienic and aseptic applications in food, beverage and life sciences
Measuring range: –200 to 600 °C (-28 to 1 112 °F)
Pressure range up to 40 bar (580 psi)
Protection class: up to IP69K
Remote parametrization with secure Bluetooth® temperature transmitters
International approvals: Certified for use in hazardous areas, explosion protection as per ATEX/IECEx, CSA, FM, EAC Ex, JPN Ex, NEPSI; Hygiene standards according to 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability
Benefits
Optimum process control: Fast sensor response times with iTHERM QuickSens technology (t90: 1.5 s)
Up to 75% faster and safer recalibrations with iTHERM QuickNeck – tool-free quick-release for instant insert removal
High sensor availability under rough conditions: Vibration resistant RTD technology iTHERM StrongSens (> 60g)
Easy product selection, configuration and maintenance
Increase productivity and product safety in sanitary applications with highly accurate and reliable measurements
Thermowells, hygienic process connections and housings expertly manufactured from high-grade materials treated for low surface roughness
Videos
Extended selection
-
High-end products
- Highly functional and convenient
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
Most downloaded
-
-
Technical Information (TI)
TI iTHERM ModuLine TM411
English version - 11/2023
Trend-setting, modular resistance thermometer for hygienic and aseptic applications
EN 15/11/202330/11/202114/02/202012/12/201821/09/2015Language:
English
Version:
15/11/2023
File size:
4.7 MB
File name:
TI01038TEN_0923-00.pdf
-
-
-
Operating Instruction (BA)
Modular hygienic thermometers
English version - 01/2020
Universal modular thermometers with RTD insert for hygienic applications
EN 20/01/2020Language:
English
Version:
20/01/2020
File size:
591 KB
File name:
BA02023TEN_0120.pdf
-
74 documents
-
-
Technical Information (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN 25/03/202415/09/202328/10/202130/07/202119/06/2020Language:
English
Version:
25/03/2024
File size:
1.1 MB
File name:
TI00426FEN_2524.pdf
-
-
-
Technical Information (TI)
TI iTHERM ModuLine TM411
Trend-setting, modular resistance thermometer for hygienic and aseptic
applicationsEN 15/11/202330/11/202114/02/202012/12/201821/09/2015Language:
English
Version:
15/11/2023
File size:
4.7 MB
File name:
TI01038TEN_0923-00.pdf
-
-
-
Technical Information (TI)
TI iTHERM ModuLine TM401
Resistance thermometer for hygienic and aseptic applications
EN 29/03/202418/03/202221/02/202030/03/201827/02/2015Language:
English
Version:
29/03/2024
File size:
1.8 MB
File name:
TI01058TEN_0724-00.pdf
-
-
-
Operating Instruction (BA)
Modular hygienic thermometers
Universal modular thermometers with RTD insert for hygienic applications
EN 20/01/2020Language:
English
Version:
20/01/2020
File size:
591 KB
File name:
BA02023TEN_0120.pdf
-
-
-
Ex Safety Instruction (XA)
XA iTHERM TM411
Modular RTD assemblies for hygienic applications
0Ех ia IIC T6…T1 Ga Х
Ga/Gb Ех ia IIC T6…T1 Х
Еx ia IIIC T85°C…T450°C Da Х
Еx ia IIIC T85°C…T450°C Da/Db ХEN 10/07/202429/10/2021Language:
English
Version:
10/07/2024
File size:
434.8 KB
File name:
XA02760TEN_0224-00.pdf
-
-
-
Ex Safety Instruction (XA)
XA TR1x, Tx88, TSx310, Tx6x, TC1x, TPx100, TM411, TR24
Thermometers and inserts
Ex ia IIC T1...T6 Ga
Ex ia IIIC T<sub>200</sub> 85 °C...T<sub>200
</sub> 450 °C DaEN 30/08/202315/05/202331/07/2020Language:
English
Version:
30/08/2023
File size:
474.5 KB
File name:
XA02109TEN_0323-00.pdf
-
-
-
Ex Safety Instruction (XA)
Modular RTD assemblies for hygienic applications iTHERM® TM411
JPN: Ex ia IIC T4 Ga/Gb
EN 31/12/2019Language:
English
Version:
31/12/2019
File size:
125.5 KB
File name:
XA01937TEN_0119.pdf
-
-
-
Ex Safety Instruction (XA)
XA iTHERM TM211, TPx100, TSx310
RTD/TC inserts and cable thermometers
ATEX/IECEx:
Ex ia IIC T6 Ga
Ex ia IIC T6 Ga/Gb
Ex ia IIIC Txxx °C DaEN 30/03/202318/07/202210/07/201928/11/201628/11/2012Language:
English
Version:
30/03/2023
File size:
456.3 KB
File name:
XA00100REN_1823-00.pdf
-
-
-
Ex Safety Instruction (XA)
XA iTHERM TM411, iTHERM TM412
Modular RTD assemblies for hygienic applications
ATEX, IECEx:
Ex ta/tb IIIC Txxx °C Da/DbEN 25/01/202416/05/202230/07/202007/05/201808/11/2012Language:
English
Version:
25/01/2024
File size:
422.8 KB
File name:
XA01023TEN_0524-00.pdf
-
-
-
Ex Safety Instruction (XA)
XA iTHERM TM411, TM412
Modular RTD assemblies for hygienic applications
ATEX, IECEx:
Ex ia IIIC Txxx °C Da/Db
Ex ia IIC T6 Ga/GbEN 27/03/202330/06/202207/05/201808/11/2012Language:
English
Version:
27/03/2023
File size:
441 KB
File name:
XA01024TEN_0423-00.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Spare parts kit sealing TA30A/TA30D
-
further parts
Order code71182602 -
-
Set O-ring 74x3 75° VMQ Silicon (5 pcs.)
-
further parts
Order code71600564 -
-
Spare parts kit sealing TA30R
-
further parts
Order code71182606 -
-
Fixing kit cpl.TMT180,181,182,187 USA
-
further parts
Order code71038252 -
-
Fixing kit cpl.TMT8x/7x (european)
-
further parts
Order code71044061 -
-
Term.block DIN B (42mm) 3 term. 5 pc
-
further parts
Order code71111513 -
-
Term.block DIN B (42mm) 4 term. 5 pc
-
further parts
Order code71111514 -
-
Term.block DIN B (42mm) 6 term. 5 pc
-
further parts
Order code71111515 -
-
Spare Parts Kit Cover TA30R
-
Housing/housing accessories
Drawing numberOrder codeAXPT0004- -
-
Terminal Head TA30A
-
Housing/housing accessories
Drawing numberOrder codeATA30A- -
-
Terminal Head TA30D
-
Housing/housing accessories
Drawing numberOrder codeATA30D- -
-
Terminal Head TA30R
-
Housing/housing accessories
Drawing numberOrder codeATA30R- -
-
Terminal Head TA30S
-
Housing/housing accessories
Drawing numberOrder codeATA30S- -
-
Spare parts kit copper ring G3/8"
-
further parts
Order code71367406 -
-
Spare parts kit ring D21/di 10xgreen
-
further parts
Order code71367427 -
-
Spare parts kit gasket Da21/10x2EPDM
-
further parts
Order code71383294 -
-
Spare parts kit gasket Da14.5/ Di8.5x2
-
further parts
Order code71484871 -
-
Spare parts kit sealing QuickNeck
-
further parts
Order code71182607 -
-
Spare Part Kit Press-Screw TK40 G1/4 d6
-
further parts
Order code71215757 -
-
Spare Part Kit Press-Screw TK40 G1/2 d6
-
further parts
Order code71217633 -
-
O-ring set for ingold connection
-
further parts
Order code60018911 -
-
Compression fitting M24x1.5, d6 cpl.
-
further parts
Order code71383277 -
-
O-ring 14.9x2.7 VMQ, FDA, 5 pcs.
-
further parts
Order code52021717 -
-
O-ring 21.89x2.62 VMQ, FDA, 5 pcs.
-
further parts
Order code52014473 -
-
O-ring 28.17x3.53 VMQ, FDA, 5 pcs.
-
further parts
Order code52014472 -
-
Profile gasket 29x36x3.7, FDA, 5 pcs.
-
further parts
Order code52014424 -
-
iTEMP TMT31, Transmitter 4-20mA
-
Electronic
Drawing numberOrder codeBTMT31- -
-
iTEMP TMT71, Transmitter 4-20mA
-
Electronic
Drawing numberOrder codeBTMT71- -
-
iTEMP TMT72, Transmitter HART
-
Electronic
Drawing numberOrder codeBTMT72- -
-
iTEMP TMT84, Transmitter PA
-
Electronic
Drawing numberOrder codeBTMT84- -
-
iTEMP TMT85, Transmitter FF
-
Electronic
Drawing numberOrder codeBTMT85- -
-
iTEMP TMT86, Ethernet Transmitter
-
Electronic
Drawing numberOrder codeBTMT86- -
-
Display Unit Head Transmitter
-
Electronic
Drawing numberOrder codeBTID10- -
-
Commubox FXA195
-
further parts
Order codeFXA195- -
-
Readwin 2000 Operation + Read. software
-
further parts
Order codeREADWIN- -
-
iTEMP TMT82, Transmitter HART
-
Electronic
Drawing numberOrder codeBTMT82- -
-
iTHERM Insert TS111
-
further parts
Order codeTS111- -
-
Extension Neck TE411
-
further parts
Order codeTE411- -
-
Compression Fitting TK40
-
further parts
Order codeTK40- -
-
Spare Parts Kit Seal Insert TK40
-
further parts
Order codeXPT0001- -
-
iTHERM ModuLine TT411
-
further parts
Order codeTT411- -
-
iTHERM ModuLine TM411
-
further parts
Order codeTM411- -
-
Service
Order codeDIENST- -
Thermo-conductive paste FDA-conform 30g
Order code71249291 -
Plug for Thermometer + Transmitter
Order codeXPT0002- -
Adapter for Ingold connection, 3.1
Order code71531585 -
Adapter for Ingold connection
Order code71531588 -
Grip cap flexible yellow TPE
Order code71275424 -
Weld in adapter M12x1.5 1.4435/316L
Order code71405560 -
G1/2 metal to metal weld in adapter
Order code71424800 -
plug screw fitting G1/2 1.4435
Order code60022519 -
Plug screw fitting 316L M12x1.5
Order code71535692 -
Weld-in adapter G3/4 d=50, 316L, 3.1
Order code52018765 -
Weld-in adapter G3/4, d=29, 316L, 3.1
Order code52028295 -
Weld-in adapter G3/4, d=55, 316L
Order code52001052 -
Weld-in adapter G3/4, d=55, 316L, 3.1
Order code52011897 -
Weld-in adapter G1, d=60, 316L
Order code52001051 -
Weld-in adapter G1, d=60, 316L, 3.1
Order code52011896 -
Weld-in adapter G1, d=53, 316L, 3.1
Order code71093129 -
Weld-in adapter G1, adjustable, 316L
Order code52001221 -
Weld-in adapter G1, adjustable,316L, 3.1
Order code52011898 -
Configuration Kit TXU10
Order codeTXU10-
